Product Description

1.1 Input Voltage 5V

1.2 Input Current 3A

1.3 Output Voltage Per Port DC 5.15±0.15V

1.4 Total Output Current 180MA*16

1.5 Maximum Output Current/Port 500MA

1. With latest fourth generation USB HUB multithreaded parallel controller.

2. Real USB2.0 interface, support USB2.0/1.1, transfer rate: full speed 480Mbps, medium-speed 12Mbps, and low speed 1.5Mbps.

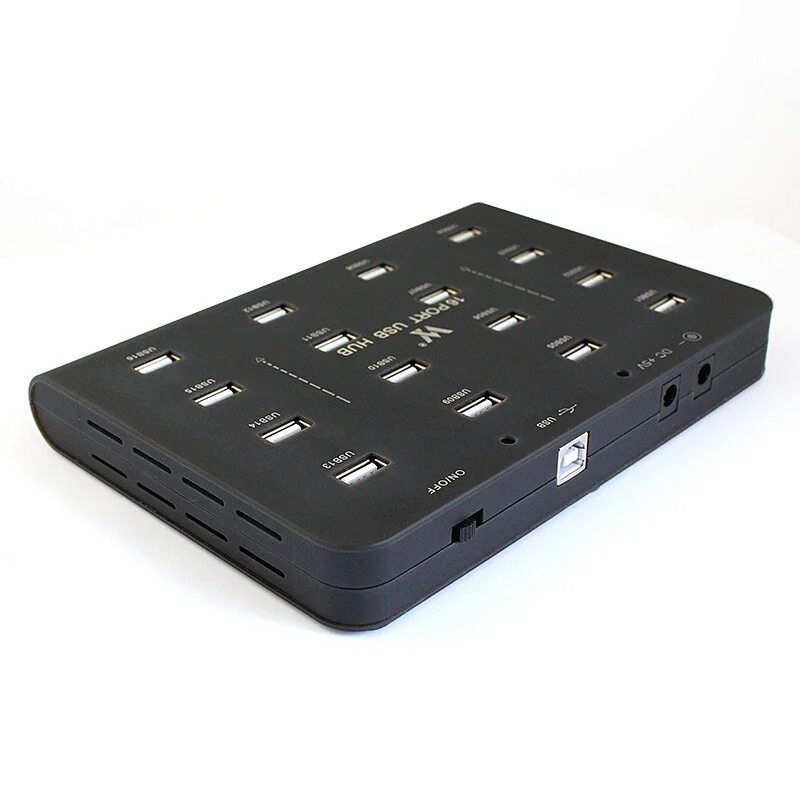

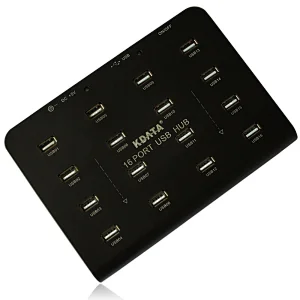

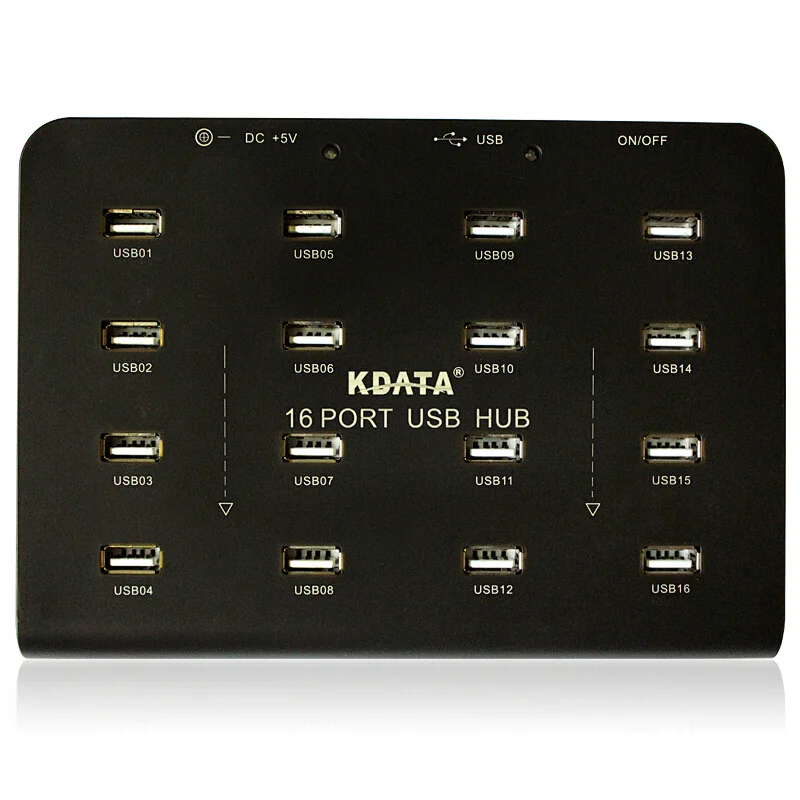

3. 16 in one 2.0 USB interface extension, to meet the enterprise, professional and personal etc user demand.

4. Supports hot-plug, auto-install, easy to use.

5. System supports: Win95/98/Me/2000/XP/WIN7, Linux2.4andMac os8.5 or above, compatible with vista

6. Equipped with a USB extension cable, to expand the use of space, desktops, laptops are applicable;

7. Maximum supports 127 kinds of peripheral USB devices.

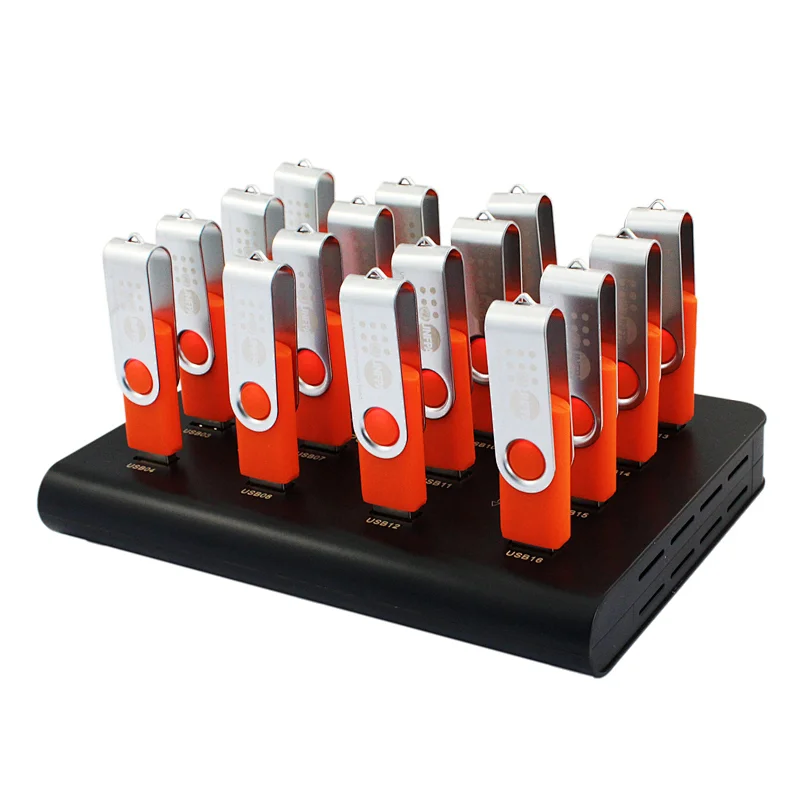

8. Apply to enterprises U disk (SD / Micro SD card) copies and testing, batch data collection, mobile phone software in batch downloads, scanners, digital cameras, digital video cameras, audio systems, monitors, input devices, Internet cafes LAN, game pad etc.

9. Using excellent electronic components, finished product reliability testing, to ensure stable operation.

10. When use this equipment, insert the power supply come with the equipment first, then connected with computer USB cable.

11. Note: This equipment come with a 5V3A DC power supply, if it can’t meet the external device required current, please prepare the current above 5V3A DC power supply according to the power consumption of the external device.
