Description of Product:
Item NO. | GH-016-C |
Material | Plastic / ABS |
Color | White, Black |
Size | 18 * 12.5 * 2.5CM |
Packed Size | 24.5 * 19.5 * 5.5CM |
N.W | 285g |
G.W.: | 1500g |
Package | Kraft Box |
Certifacate | CE, FCC, RoHS |
Interface Type | USB 2.0,USB 2.0 & USB 1.1 |
Brand Name | KDATA / OEM / ODM |
Warranty | One year |
Feature of Product:
1. one industrial power supply, 5V 40A
2.With latest 2nd generation USB HUB controller
3.USB 2.0 interface,support USB2.0/1.1,transfer rate: high speed 480Mbps,middle speed 12Mbps,low speed 1.5mbps
4.16 in one 2.0USB interface,can satisfy the enterprise and personal etc users demand
5.Support hot-plug, automatic installation,easy to use
6.System requirement: Win95/98/Me/2000/XP,Linux2.4andMac os8.5 or above version,compatible with Vista
7.With extended USB Cable,expand the use space,PC and Notebook are available
8.Support Max 127 kinds of external USB storage device
9.apply to mobile software in bulk download,Scanner,Digital camera,DVC(digital video camera,audio systems,monitor,input devices,internet bar LAN,Game Pad etc.
10.With excellent electronic components,F/G Reliablity Testing,ensure runig on a steady way,will not to cause the interface cant be recognized for long time using.
11.When use this equipment,insert the power supply come with the equipment first,then connected with computer usb cable
Usage Instruction:
Charge and Sync via Computer:
Connect the 16 port HUB to the computer via the USB2.0 extension line.
Connect the 16 port HUB to power supply.
Connect the industrial power supply to the power.
Both red and green lights are on.
Charging via Power Supply:
Turn the switch of the USB HUB to the other side,only red light s on.
The USB HUB PCB is under charge conditon.

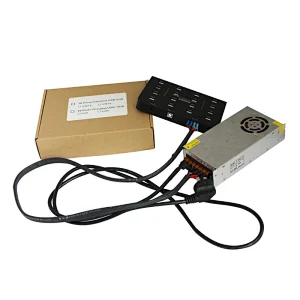

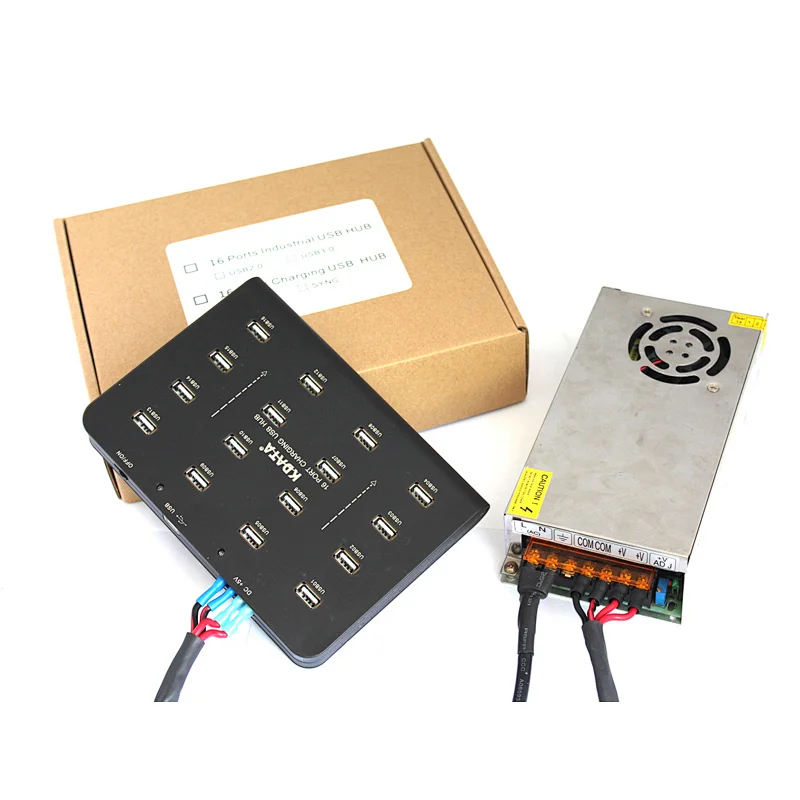

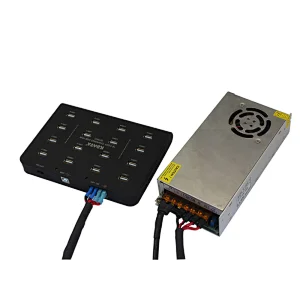

Standard Parts:

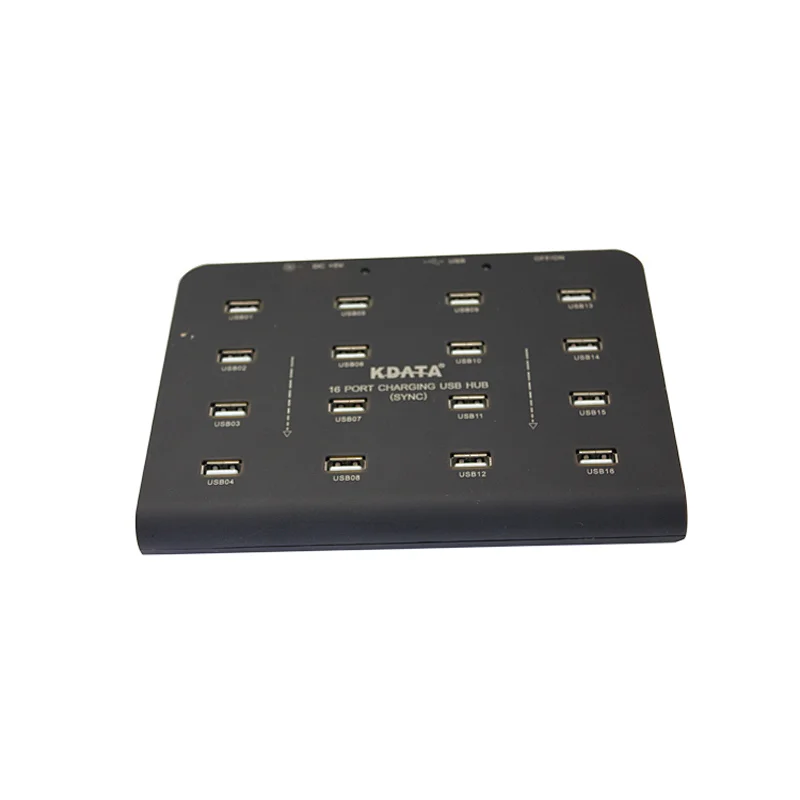

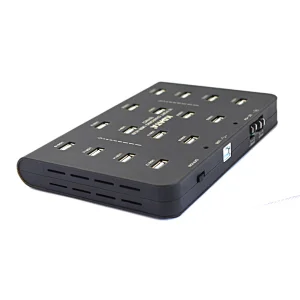

1. 16 Ports USB Hub
2. Portable AC adapter, the port can be supplied as per requirement, European, Australian, French etc.
3. 1 USB 2.0 extension line.
4. 16 sets of charging connecter and line for each HUB
5. Box
More detail about USB HUB
